SJD 导轨式升降平台 Guide rail lift platform
Guide rail lift platform
0.00
0.00
Guide rail lift platform

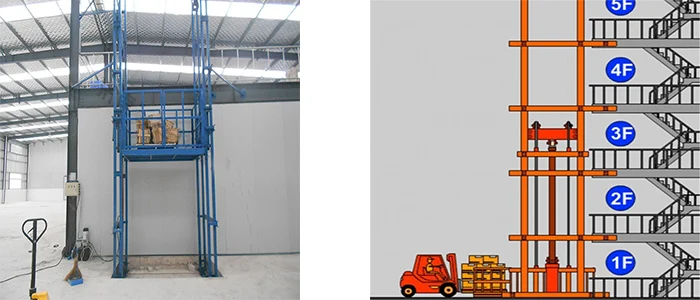

Guide rail type hydraulic industrial goods lift is also called as warehouse elevator lift, is a kind of vertical lift platform
which is used to transfer cargo between different floors.
The control button can be fixed on the ground or fixed on the platform or by remote control key. By the control button,
operator can control the platform to stop at any floor.
This warehouse industrial goods lift can provide fast, efficient, convenient and safe access to or from mezzanines, balconies,
basements, and between levels in multiple story buildings.
which is used to transfer cargo between different floors.
The control button can be fixed on the ground or fixed on the platform or by remote control key. By the control button,
operator can control the platform to stop at any floor.
This warehouse industrial goods lift can provide fast, efficient, convenient and safe access to or from mezzanines, balconies,
basements, and between levels in multiple story buildings.
Main feature of 1ton hydraulic industrial goods lift
1.Equipped single side or double sides hydro cylinder to keep the machinery works smooth and steady with noiseless, it is convenient and long working life.
2.safe manual operation in case of blackout,emergence stop can give protection when some urgency happened.
3.the pit should be 15-30cm,the height of the top is unlimited.
4.custom made according to the multistoried building.
5.imported and domestic pump is optional.
6.Hydro-cylinder and sealing element adopt imported parts.
7.Imported controlling system is optional(Schneider,Siemens,ect)
2.safe manual operation in case of blackout,emergence stop can give protection when some urgency happened.
3.the pit should be 15-30cm,the height of the top is unlimited.
4.custom made according to the multistoried building.
5.imported and domestic pump is optional.
6.Hydro-cylinder and sealing element adopt imported parts.
7.Imported controlling system is optional(Schneider,Siemens,ect)
Parameter of 1 ton hydraulic industrial goods lift
|
Model
|
-----------------------------------
|
SJD1-3
|
|
Style
|
-----------------------------------
|
Double rails
|
|
Load capacity
|
-----------------------------------
|
1000kg
|
|
Max lift height
|
-----------------------------------
|
3m
|
|
Platform size
|
-----------------------------------
|
2000*2000mm
|
|
Hydraulic cylinder
|
-----------------------------------
|
φ80*1 Pieces
|
|
Material for guide rail
|
-----------------------------------
|
Joist steel 12#*4 Pieces
|
|
Chain
|
-----------------------------------
|
BL634 With φ10Synchronous oil wire rope
|
|
Material for platform
|
-----------------------------------
|
120*60*4mm rectangle tube With 3mm checkered plate
|
|
Pump station
|
-----------------------------------
|
3kw
|
