single girder overhead crane
LD Single Girder EOT Crane match with the CD1/MD1 type Electric wire rope hoist.
which is the most popular use crane machinery on the market at present.
it is suitable for hoisting, handing and transporting weights in machine shops and stores, etc.
Operation: floor control, cab control.

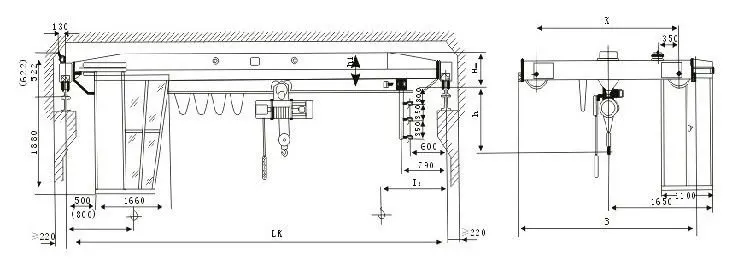

LD Single Girder EOT Crane
Lifting Capacity: 1t, 2t, 3t, 5t and 10t.
Span: 7.5 -22.5m
Crane Travelling Device
Travelling speed (m/min)
20
30
45
60
75
Reducer ratio
58.95
39.42
26.38
19.37
15.88
Motor
Model
ZDY21-4
ZDR12-4
Power (kw)
2x0.8
2x1.5
Rotation (r/min)
1380
Lifting device
(Electric hoist)
And hoist travelling device
Electric Hoist model
CD1/ MD1
Lifting speed (m/min)
8, 0.8/8
Lifting height (m)
6, 9, 12, 18, 24, 30
20; (30)
Taper Squirrel-cage type
Work duty
A3- A5
Power supply
380V, 50Hz, 3-Phase
Wheel Diameter
270mm
Rail Surface width
37- 70mm
